Function of Impulse Chiropractic Adjusting Instrument
Impulse Adjusting Instrument instrument used to target
dysfunctional spinal joints to relieve pain and improve function.If
you suffer from any of these conditions you may benefit from a
chiropractic evaluation and treatments with the Impulse Adjusting
Instrument.
1. Cervical syndrome: headache, dizziness, insomnia, limited neck
mobility, neck pain, arm numbness, neck movement disorder.
2. Thoracic syndrome: back pain, shortness of breath, poor
appetite, gastrointestinal disorders.
3. Lumbar syndrome: acute and chronic low back pain, lumbar disc
herniation, legs and feet numb.
4. Pelvic syndrome: sacroiliac joint subluxation, sciatica, toe
feet.
5. Scoliosis: the prevention of regressive lesions of the
conventional spine health.
Main performance index of Impulse Chiropractic Adjusting Instrument
| Preloading force | 5-30N |
| Impact | The impact force can be adjusted in five levels. The maximum impact
force of each level is: Level I: 100N, Level II: 200N, Level III:
300N, Level IV: 400N, Level V: 500N, tolerance ±50N |
| Stability of impact force | The stability of the impact force generated by the product should
be ±20% |
| Output frequency | The output frequency can be adjusted in six levels, the frequency
of level I: 2Hz, the frequency of level II: 4Hz, the frequency of
level III: 6Hz, the frequency of level IV: 8Hz, the frequency of
level V: 10Hz, the frequency of level VI: 14Hz, the tolerance is
±10% |
| Hits | When the automatic mode is not turned on, the number of hits is
divided into unlimited times, 5 times, 10 times, 15 times, 20
times, 25 times, 30 times, 35 times, 40 times, 45 times, 50 times,
a total of 11 levels adjustable; automatic mode Down, the number of
hits each time appears randomly in the range of 10 to 30 times |
Working conditions
| Ambient temperature | 0℃～﹢45℃ |
| Relative humidity | ≤85% |
| Atmospheric pressure | 700hpa~1060hpa |
| Power supply | AC220V±22V, 50Hz±1Hz |
| Rated input power | 300VA |
Contraindications of Impulse Chiropractic Adjusting Instrument
- Severe osteoporosis
- Acute arthritis exudation period
- Infections or ulcers on the body surface
- Pregnant women, cancer, tuberculosis patients
- Local skin damage, skin allergies and people with bleeding tendency

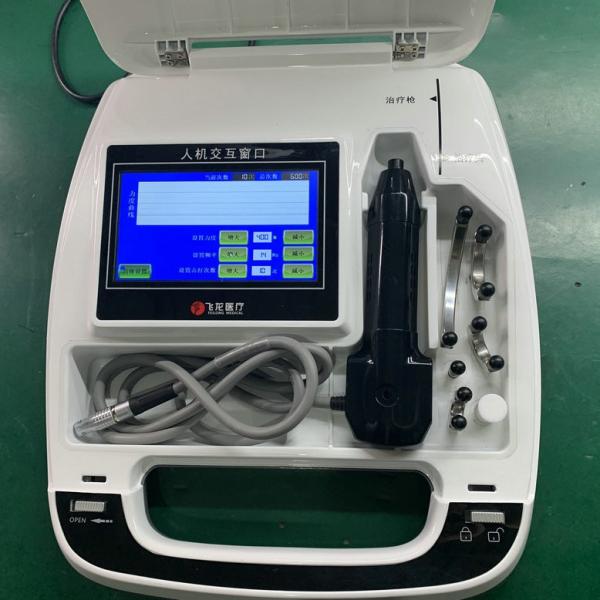

Pictures of Impulse Chiropractic Adjusting Instrument
Accessory loading and unloading
1) Accessory connection
(1) Connect the vibration gun and the host, and select the
corresponding vibration head as required;
(2) Connect the electric muscle vibrator to the AC220V, 50Hz power
socket through the power cord.
2) Disassembly of accessories
(1) Remove the power cord from the electric muscle vibrator and the
power socket;
(2) Remove the vibrating gun from the host and take off the
vibrating head.
Transport storage
Transport
During transportation, avoid rain and snow splash, vibration and
mechanical collision.
Warehouse
The packaged product should be stored in a clean room with a
relative humidity of no more than 85%, a temperature of -10°C to
40°C, no corrosive odor, and a well-ventilated, clean room.
Check and clean
| 1) Before inspection and cleaning, turn off the power switch and
unplug the power cord and wait for 1 minute to fully release the
internal capacitor storage to ensure that the product completely
stops working. |
| 2) Do not immerse any part of the product in water. |
| 3) Regularly check the product shell and display screen for cracks
or other damage. |
| 4) Regularly check whether the accessories are worn or damaged. |
| 5) Verify that the connection between the accessory and the host
interface is firmly in place. |
| 6) Check whether the mainframe enclosure is well sealed. |
| 7) When the product is not used for a long time, all accessories
should be packed and |
| 8) When removing the accessory after use, you should operate it
gently and do not pull the accessory cable forcibly, otherwise the
accessory cable may be damaged. |
Environmental protection
In the short-term final processing of the product and its related
accessories, it is necessary to consider the small amount of lead
in the solder, and the environmental protection policy of the local
government should be followed when processing, and it must not be
replaced at will.
