Usage of Chiropractic Impulse Gun
1, cervical spondylosis : insomnia, forgetfulness, drowsiness,
ringing in the ears, neck tight, wrinkled
or stiff pain, arm numbness, shoulder pain and so on.
2, lumbar disc herniation, spondylolisthesis, spinal stenosis,
sciatica, lumbar spine bone spurs, etc.
3, thoracic disease: back pain, chest tightness, stitch, shortness
of breath, palpitation and so on.
4, Body Treatment: kyphosis, torticollis, oblique, Bottom,
lymphatic massage, beauty chest
Working principle of Chiropractic Impulse Gun
The Chiropractic Impulse Gun generates a time-varying magnetic
field by pressurizing the coil with high-voltage pulses, and uses
the impact force generated by the core vibration vibration head to
treat human lesions.
The electric muscle vibrator sets the corresponding frequency,
strength, frequency limit or automatic mode through the host to
control the vibration gun, and then the vibration gun performs data
processing, and controls the corresponding unit to perform the
corresponding output.
Main performance index
| Preloading force | 5-30N |
| Impact | The impact force can be adjusted in five levels. The maximum impact
force of each level is: Level I: 100N, Level II: 200N, Level III:
300N, Level IV: 400N, Level V: 500N, tolerance ±50N |
| Stability of impact force | The stability of the impact force generated by the product should
be ±20% |
| Output frequency | The output frequency can be adjusted in six levels, the frequency
of level I: 2Hz, the frequency of level II: 4Hz, the frequency of
level III: 6Hz, the frequency of level IV: 8Hz, the frequency of
level V: 10Hz, the frequency of level VI: 14Hz, the tolerance is
±10% |
| Hits | When the automatic mode is not turned on, the number of hits is
divided into unlimited times, 5 times, 10 times, 15 times, 20
times, 25 times, 30 times, 35 times, 40 times, 45 times, 50 times,
a total of 11 levels adjustable; automatic mode Down, the number of
hits each time appears randomly in the range of 10 to 30 times |
| Noise | When the product is working normally, the noise is not more than
80dB (A) |
Working conditions
| Ambient temperature | 0℃～﹢45℃ |
| Relative humidity | ≤85% |
| Atmospheric pressure | 700hpa~1060hpa |
| Power supply | AC220V±22V, 50Hz±1Hz |
| Rated input power | 300VA |

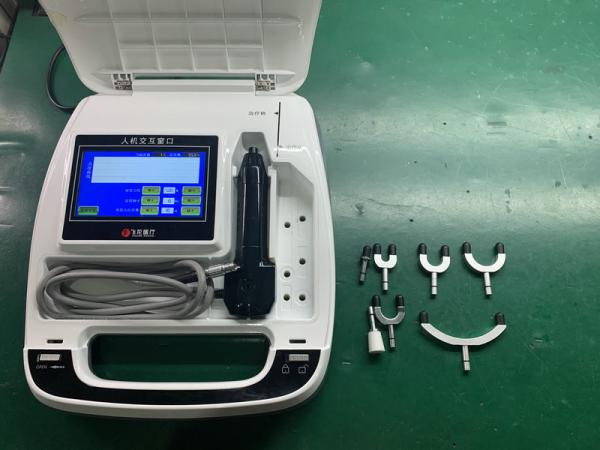

Pictures of Chiropractic Impulse Gun
Accessory loading and unloading
1) Accessory connection
(1) Connect the vibration gun and the host, and select the
corresponding vibration head as required;
(2) Connect the electric muscle vibrator to the AC220V, 50Hz power
socket through the power cord.
2) Disassembly of accessories
(1) Remove the power cord from the electric muscle vibrator and the
power socket;
(2) Remove the vibrating gun from the host and take off the
vibrating head.
Transport storage
Transport
During transportation, avoid rain and snow splash, vibration and
mechanical collision.
Warehouse
The packaged product should be stored in a clean room with a
relative humidity of no more than 85%, a temperature of -10°C to
40°C, no corrosive odor, and a well-ventilated, clean room.
