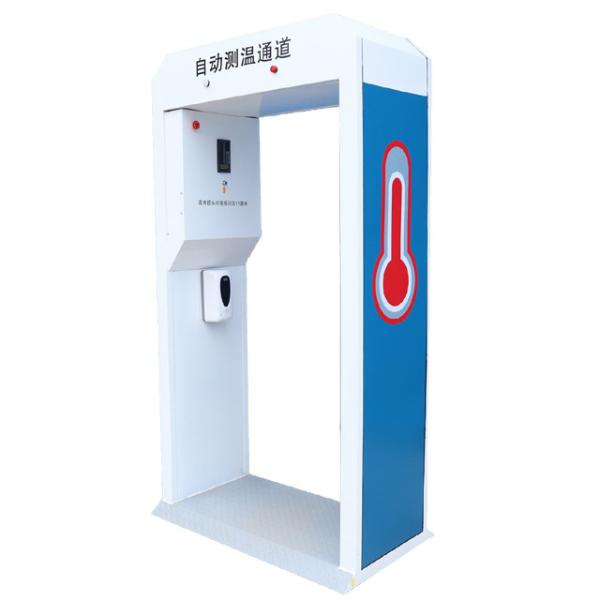

Commercial Instant IR Temperature Measurement And Disinfection
Channel
Temperature Measurement And Disinfection Channel Introduction
VOL: AC220V
POWER: 400W
Use Noise: below 36dB
OUT SIZE: 2100*1100*2450mm
INNER SIZE: 2100*1000*1950mm
WEIGHT: 220kg
Detection time: instant
Detection distance: 10-30cm
Temper.meas.area: forehead, inner side of wrist
Detection method: infrared
Accuracy: ±0.5 degrees Celsius
Temperature Measurement And Disinfection Channel Feature
* Face recognition and external personnel investigation and file
storage Can carry out identity authentication and file storage in
areas with high population flow such as shopping malls, stations.
communities, factories, etc.
* Using high-precision infrared spectrum sensor, factory calibrated
by blackbody radiation source, can measure body temperature without
contact at a long distance, can effectively avoid cross
infection.Voice prompt for normal body temperature Voice prompt for
over temperature alarm
* Smart display The body temperature display can be adjustable
accordingly to the seasonal temperature difference, which can
display the human body temperature more accurately.
* Hand wash smart spray disinfection The temperature measurement
area is equipped with an intellgent induction sprayer, non-contact
induction spraying, safe and hygienic, and can effectively
sterilize the hands.
* Automatically sense the ultrasonic out of the fog, stop when
people walk out A microwave sensor is installed at the equipment
port, which can detect the entry of people, start the fog machine
byitself, spray the disinfectant into the channel, and stop
automatically when the person leaves to avoid liquid waste.
* Equilibrium spray box to reduce throttling without hurting facial
organs The balanced spray method is used in the disinfection
channel, instead of directly spraying human facial organs, the mist
is more refined and no waste is caused.
* Bottom circulating waste liquid tank There is a circulation tank
inside the disinfection channel, which can collect and process the
excess disinfection liquid to avoid pollution to the surrounding
environment.
* Equipment status reminder The device has status reminder displays
such as work, liquid shortage, light voice, etc, so that the
equipmentmanagement staff can accurately grasp the equipment
operation status. Real-time trends of various personnel
* Automatic fluid replacement function The device is equipped with
a large-capacity liquid storage tank, with a liquid alarm prompt
function to avoid damage to the atomization equipment due to lack
of liquid, and automatically reflls the atomization tank and stops
automatically, which can meet the daily usage
* External ramp pedal There are non-slip pedals at the entrance and
exit of the equipment, which is convenient for the elderly and
children
* Lighting auxiliary functions Fully considering the use of
different scenes, the channel is equipped with LYD waterproof
lights, which can be used at night or in dark places
Temperature Measurement And Disinfection Channel Application:
Community
CBD
School
The mall
Hotel
Parameters
Details
