Accurate Positioning Spinal Decompression Table Back Decompression Machine

Ask Lasest Price
Brand Name :	FEILONG
Model Number :	FJY-5100
Certification :	CE,ISO
Payment Terms :	T/T, L/C
Delivery Time :	10 working days after receiving full payment

Add to Cart

Product Details
Company Profile

Accurate Positioning Spinal Decompression Table Back Decompression Machine

ALIEN CAPSULE

NON-SURGICAL SPINAL DECOMPRESSION SYSTEM

Spinal & Cervical FJY-5100

Product Description

Alien Capsule Non-surgical Spinal Decompression System which is a hi-tech product as the intelligent crystallization of aerospace and clinic medicine that was used for curing the spinal disease and developed by Zhengzhou Feilong Medical Equipment Co., Ltd.

It can accurately position the traction on the diseased spine, eliminate the ambient muscular resistance, open the intervertebral space to keep constant high negative pressure for penetrating the moisture, oxygen and nutrients, eliminate the pain after several times physiological nourishment, the cure rate is very high.

Technical Specifications

Item	None-surgical Spinal Decompression System	Traditional Traction Bed
Design concept	Besides pathological pressure, focus on Recovering nutrition on intervertebral disc	Only focus on eliminating pathological pressure
Nature of the force	Non-linear logarithmic curve	Linear
Power point	Focus on the pathological changes of Intervertebral disc	The whole spine
The pattern of forces	Continuous controllable dynamic model	A simple continuous or intermittent mode
Angle of force	Accurate pressure reduction, force angle is precise, accuracy rate can reach to 90%	Traction is resisted, the angle is not correct
Transmission device	Hydraulic drive system	Simple connection of cables and pulleys
Vertebral side muscle contraction resistance	Almost do not produce	Produce produce
Receptor-force feedback system	Do have	Don't have
Intervertebral disc internal pressure drop	Significantly, up to -150 to -200mmHg	Not obvious, generally difficult to achieve negative pressure
Intervertebral disc height increase	Significantly higher	Not obvious
Treatment result	Make the protrusions back to intervertebral disc, restore intervertebral disc height	Trying to relieve the patient's pain, only by forcing patients braking
Patient comfort	Higher	Poor
Device type	Treatment and rehabilitation	Rehabilitation
Clinical research situation	More global research confirmed	Less systematic study

Application

TREATMENT FOR:

Bulging Disc
Herniated Disc
Stenosis
Degenerative Disc Disease
Posterior Facet Syndrome
Sciatica
Lumbar Muscle Strain
Scoliosis

Software

(1) Mode: Procedure operation and automobile diagnostic and test ofequipment hardware,potential upgrade.

(2) Language: English

(3) Large liquid crystal and touch screen display,Automatic man-machinedialogue operation mode,display real-time treatment data and help message dynamically,save the every treatment data of patients automatically.

Safety performance

(1) The emergency stop button installed in bed and control cabinet,whenbutton is pressed,the power act on patients recover original state in 2 seconds.

(2) When the emergency stop button lose efficacy,the system will detectionautomatically,start treatment can not starting or keeping.

(3) The actual power is 5kgs more than theory power on the process of treatment,the system will interrupt treatment automatically.

(4) LED floodlight installed underneath the foot plate,in case of patients misstheir feet at the time of insufficient light.

(5) Complete machine battery: Real power-off protection,keeping on operating at least 28 minutes when power-off, which ensures to finish the patients treatment on the process of treatment after power-off.

Detailed Images

1. Touch Screen computer

Easily select treatment parameters without the need of a separate keyboard and mouse.

2. Patient Report Printer

Prints the treatment record for patient documentation.

3. Lumbar Selector

Adjusts system to proper angle for specific lumbar level.

4. Power On/Off & Emergency Stop Switch

Stop button immediately ramps down treatment forces.

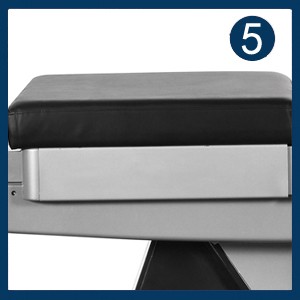

5. Floating lower mattress

Reduces friction during treatment…specially lubricated bearings improve life and performance.

6. Patient Safety Switch

Gives patient the ability to immediately ramp down treatment forces if desired.

7. Operator Remote

Allows healthcare provider to easily position patient.

8. DVD/CD player

Relax the patient by media video.

9. Audio headphone

Allow patient to listen to music, educational video or movie.

10. Upper bed body

Comfort and relax the patient.

11. Harness tensioner

Tightens and secures patient harness to bed.

12. Upper body support

Improves patient positioning and comfort.

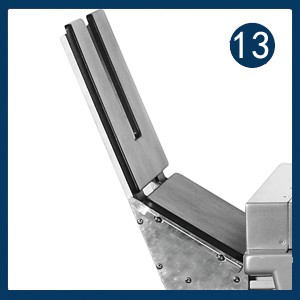

13. Paltform

Patient stands on here and keep their safe.

14. Treatment Positioner & Tensioning Belt

Therapeutic forces are delivered to the patient through the tensioning belt, which can be raised and lowered by the treatment positioner.

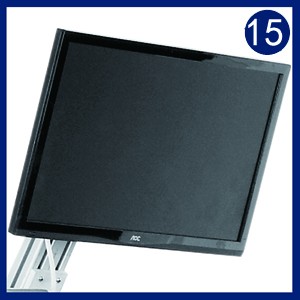

15. Patient media screen

Patients can use this feature to relax or help educate.

FAQ:

1. What is Spine Decompression?

Spine Decompression is the medical equipment to cure the pain of lumbar disc herniation, which is non-surgical, non-drug therapy.

2. What is the advantage?

1) Accurate positioning, can be effectively applied to the pathological changes of intervertebral disc.

2) High treatment effective rate, total cure rate more than 86%.

3) High security, traction is stable and controllable. The Emergency stop ensures the patient's safe.

3. Applications

1) Lumbar disc herniation

2) Lumbar degenerative

3) Lumbar Facet syndrome

4) Sciatica

4. Contraindication

1) Pregnancy

2) Metastatic carcinoma

3) Serious osteoporosis

4) Intervertebral infection

5. Why to use ice compress and intermediate frequency(IF) therapy after the treatment?

To make the relaxed muscles retraction, restore its tension.

Treatment cycles	Treatment frequency	Treatment times	Treat time
3 to 4 weeks	Once a day	20 times	30 Min. each time
