Safety performance
(1) The emergency stop button installed in bed and control cabinet,
when button is pressed,the power act on patients recover original state
in 2 seconds.
(2) When the emergency stop button lose efficacy,the system will
detection automatically,start treatment can not starting or keeping.
(3) The actual power is 5kgs more than theory power on the process
of treatment,the system will interrupt treatment automatically.
(4) LED floodlight installed underneath the foot plate,in case of
patients miss their feet at the time of insufficient light.
(5) Complete machine battery: Real power-off protection,keeping on operating at least 28 minutes when power-off,which ensures to
finish the patients treatment on the process of treatment after power-off.

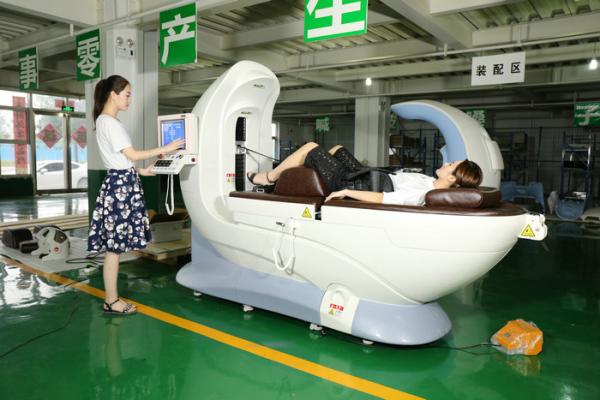

Operating Procedure of Spinal Decompression System
1. Starting
Connect outer power—UPS Power Switch—Power Switch—Starting
Switch—Initial interface;
2. Operating PC, input patient's information
Initial interface—Set new record—input patient's name—edit serial
number—choose traction angle—input patient's weight—reduce max
traction 4-5 kgs—continue—keep—exit—initial
interface—refresh—choose patient—next--start;
3. Preparation before treatment for the patient
Weighing—fix the pelvic belt –fix the chest belt—incline the
bed(press number“2”) –adjust the patient's location in the bed—fix
the pelvic belt—connect the chest belt with the bed—put the knee
bolster—supporter up(press number“7”)—airbag up(press number
“9”)—connect traction belt—begin to treat;
4. Treatment completed
Traction finished—exist the surface—remove the traction belt—take
the knee bolster down—unfasten chest belt—supporter down( press
number “8”)— use ice compress and intermediate frequency therapy to
treat in bed.
Detailed Images
1. Touch Screen computer
Easily select treatment parameters without the need of a separate
keyboard and mouse.
2. Patient Report Printer
Prints the treatment record for patient documentation.
3. Lumbar Selector
Adjusts system to proper angle for specific lumbar level.
4. Power On/Off & Emergency Stop Switch
Stop button immediately ramps down treatment forces.
5. Floating lower mattress
Reduces friction during treatment…specially lubricated bearings
improve life and performance.
6. Patient Safety Switch
Gives patient the ability to immediately ramp down treatment forces
if desired.
7. Operator Remote
Allows healthcare provider to easily position patient.
8. DVD/CD player
Relax the patient by media video.
